Auckland's rapid urban expansion over the past decades has pushed development onto former volcanic plains and estuarine flats, where the underlying Waitemata Group mudstones and Tauranga Group clays exhibit moderate to high shrink-swell potential. These reactive soils, common across the isthmus and extending into the North Shore and Manukau, undergo significant volume changes with seasonal moisture variations. For any new build or renovation in Auckland, expansive soil evaluation is not just a precaution — it is a requirement under NZS 3604 to verify the subgrade classification. We integrate this assessment with calicatas exploratorias to log soil profiles directly and with ensayo de permeabilidad to measure drainage rates that influence swelling behaviour.
A reactive clay with a plasticity index above 35 can heave up to 75 mm annually, potentially cracking foundations within the first two years if unaddressed.
Methodology and scope
Our field team deploys a lightweight hydraulic push-probe rig capable of extracting undisturbed block samples from depths of up to 3 metres, even on tight residential sites in central Auckland. The soil is immediately sealed in wax-coated containers to preserve natural moisture content — critical for accurate swell testing. In the laboratory, we run a full suite of index tests: Atterberg limits (NZS 4402), linear shrinkage, and free swell oedometer cycles. For projects where shallow foundations are planned, we combine these results with ensayo CBR to evaluate subgrade strength under soaked conditions, and with límites de Atterberg to confirm plasticity indices that classify the soil as low, medium or high reactivity. Every result is cross-referenced against the NZGS field classification for expansive soils.

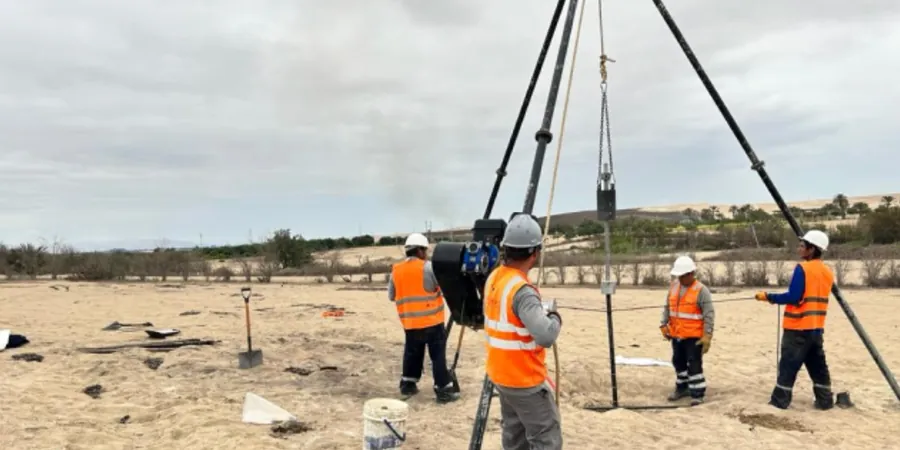

Technical reference image — Auckland
Local considerations
NZS 3604:2011 requires that sites with moderate to high expansive soil reactivity use specific foundation types — such as ribbed rafts or deep piles — to resist movement. In Auckland, where clay layers can extend 8 to 12 metres deep beneath the volcanic tuff, ignoring this evaluation can lead to differential heave of up to 100 mm. Cracks in monolithic slabs, tilted retaining walls, and jammed doors are the visible signs. We have assessed subdivisions in Pukekohe and Hobsonville where post-construction heave exceeded 50 mm because the original evaluation used generic regional data instead of site-specific sampling. A proper expansive soil evaluation in Auckland must consider both the soil's index properties and its in-situ moisture regime to avoid costly structural repairs.
Hand augering or test pits to 3 m depth, undisturbed block sampling, moisture content verification on site, and detailed soil profile logging for expansive soil evaluation in Auckland.
02
Laboratory Reactivity Suite
Atterberg limits, linear shrinkage, free swell, and swelling pressure under oedometer conditions, all performed in an IANZ-accredited lab to NZS 4402 standards.
03
Foundation Design Support
Calculation of design swell movement, classification per NZS 3604, and recommendation of foundation type (ribbed raft, deep pile, or void former) tailored to the site's expansive soil evaluation.
Applicable standards
NZS 3604:2011 – Timber-framed buildings (subgrade classification), NZS 4402 – Standard test methods for liquid limit, plastic limit and plasticity index, NZS 4402:1986 – Methods of testing soils for civil engineering purposes
Frequently asked questions
What is the cost range for an expansive soil evaluation in Auckland?
A standard expansive soil evaluation in Auckland typically costs between NZ$1.110 and NZ$2.410, depending on the number of test pits, required laboratory tests, and site access conditions. Contact us for a project-specific quote.
How long does the laboratory testing take for expansive soils?
The full suite — Atterberg limits, linear shrinkage, and oedometer swell — usually takes 5 to 7 working days from sample receipt. Rush testing can be arranged within 3 working days.
Do I need an expansive soil evaluation if I am building on a known volcanic soil site in Auckland?
Yes. Volcanic soils in Auckland, particularly the red-brown clays overlying basalt, can have high plasticity and moderate swelling potential. A site-specific evaluation is mandatory under NZS 3604 for any new dwelling or major addition.
What foundation type is recommended for highly reactive clay in Auckland?
For sites classified as high reactivity (PI > 35), a stiffened ribbed raft or deep pile foundation is typically required. Void formers under the slab are also common to allow for soil heave without transferring stress to the structure.
