Auckland’s urban expansion over the past two decades has pushed development onto the volcanic field’s varied geology — from stiff basalt flows to soft alluvial deposits and estuarine muds. Many early subdivisions lacked detailed ground response studies, relying instead on regional seismic maps that miss local amplification effects. We perform seismic microzonation that captures these site-specific variations, combining borehole logs, geophysical surveys, and laboratory testing. Before any large project, we recommend complementing this analysis with a study of dynamic soil properties to refine input motions, and a [site-specific liquefaction assessment](/masw-vs30/) when loose saturated sands are present. This layered approach ensures the design spectrum actually matches what the ground will do during an earthquake.
Auckland’s subsurface can shift from rock to soft clay within 50 meters — microzonation captures this variability zone by zone.
Methodology and scope
A common mistake we see is assuming a single site class for an entire block. Auckland’s subsurface can shift from rock to soft clay within 50 meters. Our seismic microzonation corrects this by dividing the area into zones with distinct Vs30 values, amplification factors, and liquefaction potential. We follow the NZGS guidelines strictly, using multi-channel analysis of surface waves (MASW), downhole seismic tests, and standard penetration tests to build the soil profile. Each zone gets a clear recommendation: for stiff soils we often advise cimentaciones superficiales after verifying bearing capacity, while for deep soft layers we recommend monitoreo de excavaciones to track deformation during construction. The final report includes a zonation map, spectral acceleration curves, and design response spectra for each zone.

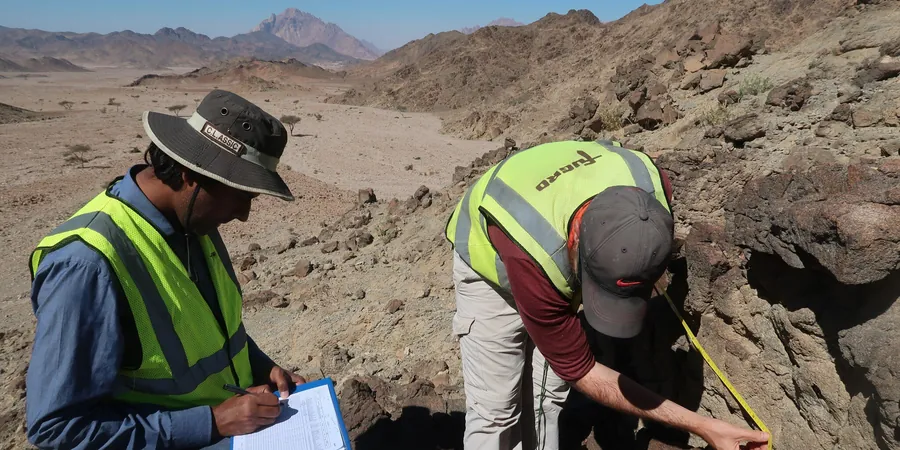

Technical reference image — Auckland
Local considerations
Under NZS 4203 and NZGS guidelines, ignoring local soil amplification can lead to under-designed foundations and structural damage during a moderate earthquake. Auckland sits on the Auckland Volcanic Field, with dozens of monogenetic volcanoes that left behind varying lava flows, tephra layers, and buried paleosols. A structure built on 10 meters of soft alluvial clay will experience significantly higher accelerations than one on basalt rock just 200 meters away. Our microzonation study quantifies these differences and provides specific design spectra for each zone, reducing the risk of non-ductile failure or differential settlement.
Multi-channel analysis of surface waves (MASW) and horizontal-to-vertical spectral ratio (HVSR) to map Vs30 and soil resonance frequencies across the site.
02
Borehole Drilling & Sampling
Continuous boreholes with SPT every 1.5 m, undisturbed tube samples for laboratory testing, and groundwater monitoring to define soil stratigraphy.
03
Laboratory Dynamic Testing
Cyclic triaxial, resonant column, and bender element tests to obtain shear modulus reduction and damping curves for each soil layer.
04
Seismic Hazard & Site Response Analysis
Probabilistic seismic hazard assessment (PSHA) combined with 1D/2D site response analysis (SHAKE, DEEPSOIL) to generate design spectra and acceleration time histories.
How long does a seismic microzonation study take for a typical Auckland site?
For a standard 2–5 hectare site with moderate soil variability, the field campaign takes 3–5 days, followed by 2–3 weeks of laboratory testing and numerical analysis. Total turnaround is usually 4–6 weeks from mobilization to final report delivery.
What is the cost range for a seismic microzonation in Auckland?
The cost typically ranges from NZ$7,170 to NZ$28,510 depending on site size, number of boreholes, geophysical lines, and complexity of soil layering. We provide a fixed-price quote after a site visit and review of existing data.
Do I need microzonation for a single house foundation in Auckland?
For a standard single dwelling, NZS 4203 allows a simplified site class assignment based on surface geology. However, if the site has soft soils, steep slopes, or is near a fault, a microzonation study reduces uncertainty and can save money by avoiding over-conservative foundation design.
