Auckland's rapid expansion from a volcanic landscape into a sprawling urban center has placed unique demands on geotechnical engineering. The city's terrain, shaped by the Auckland Volcanic Field, presents a mix of basalt flows, tephra deposits, and soft marine sediments. For any project involving grade changes or earth retention, MSE (Mechanically Stabilized Earth) wall design has become a go-to solution. These systems rely on the interaction between granular backfill and tensile reinforcements to create a stable mass that resists lateral earth pressures. Before specifying reinforcement, we often run a resistividad-electrica-sev survey to map subsurface stratigraphy and identify potential weak zones beneath the proposed wall footprint.
The key to durable MSE walls in Auckland is managing the interaction between volcanic foundation soils and properly drained select granular backfill.
Methodology and scope
The humid subtropical climate of Auckland accelerates weathering of volcanic soils, altering their engineering properties over time. This seasonal moisture variation directly influences the design parameters for MSE wall backfill materials. Soils that appear competent in dry conditions can lose shear strength rapidly when saturated. That is why our design process emphasizes drainage control and select granular fill specifications. We also integrate findings from asentamiento-diferencial analysis to predict how variable foundation soils beneath the wall will respond under load. The typical MSE wall design sequence in Auckland includes:
Site investigation with test pits or boreholes to classify foundation material.
Selection of geosynthetic or metallic reinforcement based on durability requirements.
Calculation of internal and external stability per NZGS guidelines.
Specification of backfill gradation and compaction standards.

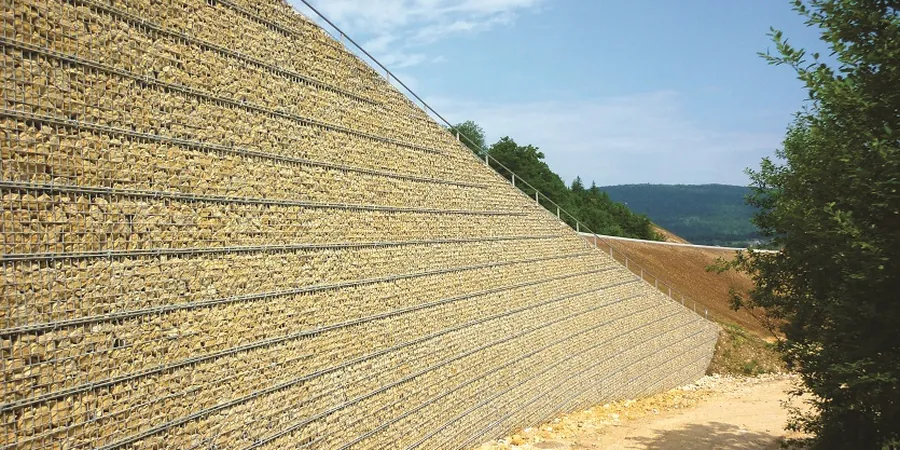

Technical reference image — Auckland
Local considerations
The New Zealand Geotechnical Society (NZGS) guidelines emphasize a risk-based approach for MSE walls, especially in seismically active regions like Auckland. Although the city is not near a major plate boundary, deep-seated volcanic faults and the potential for liquefaction in reclaimed coastal areas demand careful analysis. The primary risks include long-term creep of geosynthetic reinforcements under sustained load, corrosion of metallic strips in aggressive ground conditions, and differential settlement between wall panels. We apply partial factors from NZS 3404 for steel components and follow the AASHTO LRFD methodology for external stability checks. A comprehensive estabilidad-taludes assessment is also conducted to verify global stability of the reinforced mass and the retained slope.
Boreholes, test pits, and laboratory testing to characterize foundation soils and select backfill materials.
02
Reinforcement Selection
Evaluation of geosynthetic versus metallic options based on design life, corrosion risk, and project budget.
03
Stability Analysis
Internal, external, and global stability calculations using limit equilibrium and finite element methods.
04
Seismic Design
Pseudo-static and dynamic analysis per NZS 4203 to ensure wall performance under earthquake loading.
Applicable standards
NZS 3404:1997 (Steel structures, for metallic reinforcements), NZS 4203:1992 (General structural design and seismic loading), NZGS Module 3: Design of Retaining Structures (2017), AASHTO LRFD Bridge Design Specifications (Section 11)
Frequently asked questions
What are the typical design life requirements for MSE walls in Auckland?
Design life typically ranges from 50 to 120 years. For permanent structures, geosynthetic reinforcements undergo creep testing to ensure long-term strength retention. Metallic strips require corrosion protection, often galvanization or epoxy coating, especially in Auckland's coastal or acidic volcanic soils.
How does the Auckland Volcanic Field affect MSE wall design?
The volcanic soils, such as tephra and weathered basalt, can have variable shear strength and high permeability when unsaturated. However, they may become collapsible upon wetting. This requires careful selection of drainage layers and confirmation of compaction densities during construction.
What is the cost range for MSE wall design in Auckland?
For a typical residential to medium-scale commercial project, the design and engineering costs range between NZ$2,070 and NZ$8,200. This covers site investigation, stability analysis, reinforcement specification, and construction support. Larger or more complex walls may exceed this range.
What are the main differences between MSE walls and conventional reinforced concrete cantilever walls?
MSE walls are more flexible and tolerate larger differential settlements than rigid concrete walls. They rely on the reinforced soil mass to resist overturning and sliding, whereas cantilever walls depend on a concrete stem and base. MSE walls are often more economical for heights above 6 m, provided suitable backfill is available.
