The rapid suburban expansion of Auckland since the 1950s has pushed road construction onto marginal ground, including soft alluvial clays and peat deposits along the Waitematā Harbour margins. These materials, often with natural moisture contents exceeding 100%, lack the bearing capacity required for pavement subgrades. Implementing soil stabilization for roads in Auckland addresses this deficiency by chemically modifying the soil matrix to achieve a California Bearing Ratio (CBR) above 5% for subbase layers. Before treatment, a thorough geotechnical investigation is essential; integrating a CBR vial assessment helps determine the in-situ strength, while clasificacion suelos via the Unified Soil Classification System (USCS) guides additive selection. This approach ensures the treated layer meets the performance criteria for traffic loads and environmental exposure.
In Auckland's soft volcanic clays, lime treatment can reduce plasticity index from 45% to below 15% within seven days of curing.
Methodology and scope
Auckland's humid subtropical climate, with annual rainfall exceeding 1,200 mm, keeps subgrades persistently wet, making mechanical compaction alone insufficient for long-term pavement stability. The local geology, dominated by Waitemata Group sandstone and mudstone interbedded with volcanic ash deposits, produces highly variable soil types that respond differently to additives. For cohesive soils, hydrated lime (Ca(OH)₂) is applied at 3-6% by dry weight to reduce plasticity index and improve workability. For granular materials, ordinary Portland cement at 2-5% provides rapid strength gain through hydration reactions. The process typically includes pulverization to 95% passing a 25 mm sieve, mixing with a stabilizer, and compaction to 98% of modified Proctor density. A key aspect is the delay time between mixing and compaction, which must not exceed two hours for cement-treated soils to avoid premature setting. This methodology is complemented by compactacion dinamica when deep improvement is needed alongside surface stabilization.

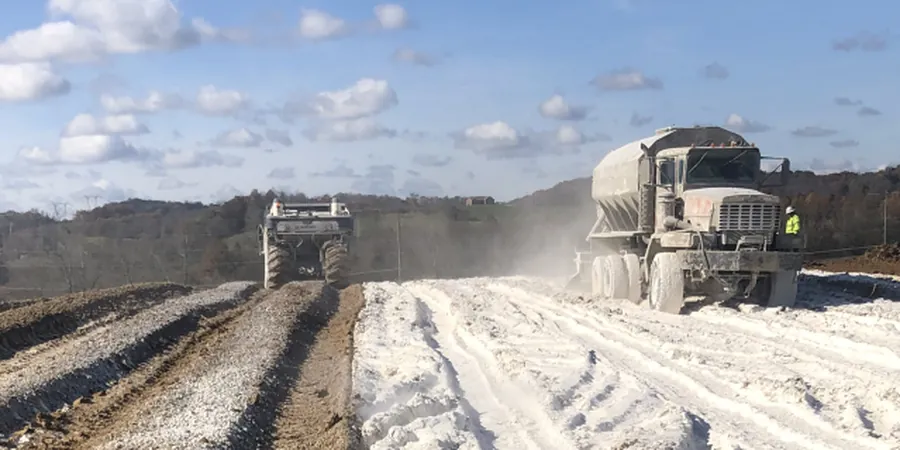

Technical reference image — Auckland
Local considerations
One recurring issue we observe in Auckland projects is the underestimation of organic content in topsoil layers stripped before road formation. Peat pockets, common in the Mangere and Henderson valleys, can have organic matter above 10%, which inhibits cement hydration and lime-pozzolanic reactions. If not detected via loss-on-ignition testing (NZS 4402), the stabilization may fail within months, leading to differential settlement and pavement cracking. Another risk is the rapid drying of treated soil during Auckland's summer months; evaporation rates can exceed 6 mm per day in January, reducing the water available for proper compaction. A practical mitigation is to schedule mixing during early morning hours and apply a membrane cure immediately after rolling.
Lime and Cement Treatment for Subgrade Improvement
In-situ mixing of hydrated lime or Portland cement at depths of 200-400 mm to raise CBR values and reduce plasticity. Our team uses single-shaft pulverizers and self-propelled mixers to achieve uniform blending, followed by sheepsfoot compaction and grading. We verify field density with nuclear gauge testing per NZS 4402 and take undisturbed samples for unconfined compressive strength (UCS) testing after 7 and 28 days of curing. This service is ideal for clayey subgrades in South Auckland and the Rodney district.
02
Chemical Additive Selection and Mix Design
A laboratory-based service where we test representative soil samples from your Auckland site to determine the optimal stabilizer type and dosage. Using the Eades and Grim pH test (NZS 4402) for lime demand and the moisture-density relationship from modified Proctor (NZS 4407), we establish a mix design report. The output includes target moisture content, additive percentage, expected CBR, and UCS values, along with a recommended construction methodology for your specific project conditions.
Applicable standards
NZS 4404:2010 – Land Development and Subdivision Infrastructure, Austroads Guide to Pavement Technology Part 4D: Stabilised Materials (AGPT04D-19), NZS 4402 – Standard Test Method for Compressive Strength of Molded Soil-Cement Cylinders, TNZ M/4 – Specification for Basecourse Aggregate (New Zealand Transport Agency)
Frequently asked questions
How does soil stabilization for roads differ from simple compaction?
Compaction densifies soil by reducing air voids but does not alter the inherent mineralogy or moisture sensitivity of clay particles. Stabilization introduces chemical binders – lime, cement, or fly ash – that form cementitious compounds through pozzolanic reactions. This permanently reduces plasticity, increases strength, and improves resistance to water infiltration. In Auckland's wet climate, compaction alone often fails to deliver the long-term performance required for pavement layers carrying heavy traffic loads.
What is the typical cost range for soil stabilization in Auckland?
Professional soil stabilization for roads in Auckland typically ranges between NZ$1.290 and NZ$5.480 per project, depending on the area treated, depth of stabilization, type of additive required, and site access conditions. This includes mobilisation, mixing, compaction, and quality control testing. Larger projects with volumes exceeding 500 m³ benefit from economies of scale, reducing the per-square-metre cost significantly.
How long does the stabilization process take before the road can be used?
After mixing and compaction, the treated layer requires a curing period of 7 to 14 days before it can sustain construction traffic or be overlaid with asphalt. During this period, moisture loss must be controlled with a membrane or light water spraying to prevent surface cracking. The exact duration depends on the additive type, ambient temperature, and achieved strength. In Auckland's mild winter conditions, cement-treated soils reach 70% of design strength in 7 days.
Can soil stabilization be used on Auckland's volcanic ash soils?
Yes, but the approach must be tailored. Volcanic ash soils, common in the Auckland isthmus, contain allophane and halloysite clays with high natural water content and low bulk density. Lime treatment is generally preferred over cement because it reduces the high plasticity index typical of these soils. However, the pozzolanic reaction may be slower due to the amorphous nature of the clay minerals, requiring a longer curing period of 14-21 days before achieving target strength.
Location and service area
We serve projects across Auckland and its metropolitan area.
