Auckland's humid subtropical climate, with annual rainfall exceeding 1,200 mm concentrated in winter, saturates the volcanic ash and colluvium layers that mantle the city's many hills. This constant wetting cycle, combined with the steep slopes carved into Waitemata sandstone and East Coast Bays formation, makes slope stabilization design a critical step before any cut or fill operation. Our team has been assessing failure mechanisms in these materials for over two decades, combining limit equilibrium and finite element methods to deliver solutions that respect the local geology. Before finalizing a design, we often integrate drainage geotechnicalanalysis to reduce pore pressure buildup, which is the primary trigger for shallow slides in Auckland's residential subdivisions.
In Auckland's volcanic terrain, effective slope stabilization design must account for both the residual shear strength of colluvium and the seismic demand from the Hikurangi subduction zone.
Methodology and scope
With a population approaching 1.7 million and a topography that forces development onto slopes exceeding 25 degrees in suburbs like North Shore and Titirangi, the demand for solid slope stabilization design has never been higher. We approach each project by first classifying the soil profile through test pits and boreholes, then running direct shear and triaxial tests on undisturbed samples to obtain effective stress parameters. The design itself follows the NZGS 2005 guidelines and incorporates both global stability checks and internal reinforcement calculations. For sites underlain by the weathered Parnell grit, we frequently combine our stabilization design with geotechnical instrumentation to monitor movement during construction and verify that predicted factors of safety are maintained in real time.

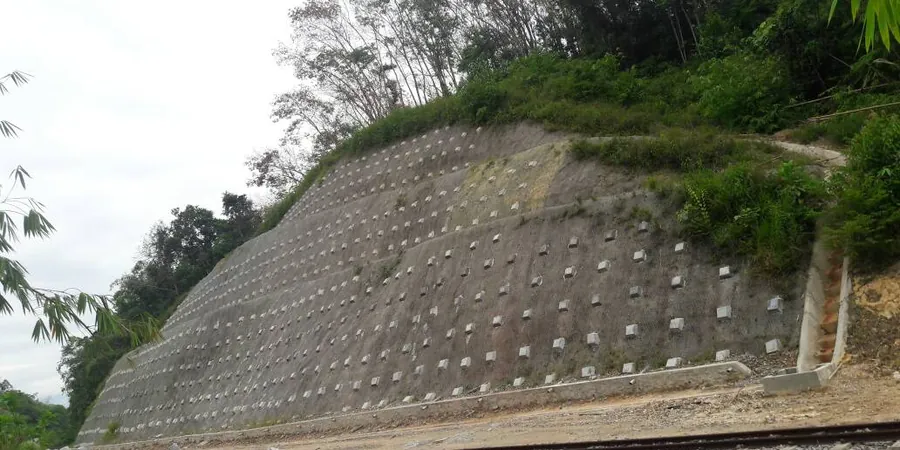

Technical reference image — Auckland
Local considerations
The shallow volcanic ash soils of the Auckland Isthmus are notorious for rapid strength loss after prolonged rainfall, a behavior documented in the 2023 Anniversary Weekend floods that triggered hundreds of shallow landslides across the region. These failures typically occur along the interface between the ash layer and the underlying weathered sandstone, where perched water tables develop within hours of intense rain. Ignoring this perched water condition in slope stabilization design leads to factor of safety overestimates of up to 40%, a risk we mitigate by installing standpipe piezometers and modeling transient seepage using saturated-unsaturated flow analysis.
Bishop simplified and Morgenstern-Price methods for circular and non-circular failure surfaces. We model multiple slip surfaces per profile to identify the critical failure mechanism in Auckland's layered volcanic soils.
02
Finite Element Slope Modeling
Plaxis 2D and RS2 simulations that capture strain-softening behavior in sensitive clays and progressive failure in stiff fissured materials. Essential for slopes with complex stratigraphy or adjacent infrastructure.
03
Reinforced Soil Slope Design
Geogrid and steel mesh reinforcement design per AASHTO and FHWA guidelines. We specify tensile strength, spacing, and embedment lengths to achieve target factors of safety in both static and seismic conditions.
04
Dewatering and Drainage Integration
Horizontal drains, French drains, and toe drain blankets designed to lower the phreatic surface. We calculate required spacing and diameter based on saturated hydraulic conductivity values measured in situ using falling head tests.
Applicable standards
NZS 4402:1986 (Soil testing methods), NZGS 2005 (Slope stability guidelines for New Zealand), AS/NZS 1170.0:2002 (Structural design actions)
Frequently asked questions
What is the typical cost range for slope stabilization design in Auckland?
For a standard residential slope up to 15 m height, the design fee ranges between NZ$2.980 and NZ$9.930 depending on the complexity of the geology, the number of analysis sections, and whether seismic loading is required. This includes site investigation coordination, laboratory testing, limit equilibrium modeling, and a detailed geotechnical report with construction drawings.
How do you account for seismic loading in slope stabilization design?
We follow NZS 1170.5:2004 to determine the horizontal seismic coefficient based on the site subsoil class and the annual probability of exceedance. For Auckland, the design peak ground acceleration (PGA) for a 500-year return period is typically 0.13g to 0.18g on Class C sites. We then perform pseudo-static analysis using a seismic coefficient of half the PGA for moderate ductility slopes, and we also check post-seismic stability using residual strength parameters.
What soil testing is required before slope stabilization design?
We require at least two test pits or boreholes per slope profile to determine stratigraphy, depth to bedrock, and groundwater conditions. Laboratory tests include direct shear (NZS 4402) or triaxial compression (NZS 4402) on undisturbed samples, plus Atterberg limits, natural moisture content, and grain size distribution. For slopes underlain by volcanic ash, we also run consolidation tests to assess collapsibility under wetting.
Location and service area
We serve projects across Auckland and its metropolitan area.
