Auckland's volcanic landscape, with over 50 eruption centres and a population nearing 1.7 million, presents unique challenges for slope stability analysis. The Waitemata Group sandstone and East Coast Bays formation create complex bedding planes that influence failure mechanisms in residential subdivisions and infrastructure corridors. Before any cut or fill operation, a rigorous slope stability analysis must account for the residual shear strength of these interbedded sequences, particularly where groundwater seepage emerges along bedding contacts. Incorporating instrumentation geotecnica into the monitoring plan provides real-time pore pressure data that refines the stability model. The Auckland region also sits within a moderate seismic zone under NZS 1170.5, meaning pseudo-static seismic coefficients must be applied to critical slopes near transport corridors.
In Auckland's volcanic terrain, a one-metre rise in the phreatic surface can reduce the factor of safety by 0.2–0.3, turning a stable slope into a liability.
Methodology and scope
The NZGS 2005 guidelines for slope stability analysis in Auckland mandate a minimum of two limit equilibrium methods — typically Bishop simplified and Spencer — to verify factor of safety. For volcanic ash soils on the North Shore and Manukau ridges, the presence of metastable structures requires careful selection of drained vs undrained strength parameters. The analysis workflow begins with a site-specific geological model, followed by subsurface exploration to identify potential failure surfaces. Field shear strength testing via veleta-campo helps establish peak and residual values for soft clays. Seepage analysis using SEEP/W or similar software quantifies phreatic surface variations that reduce effective stress. Key parameters include:

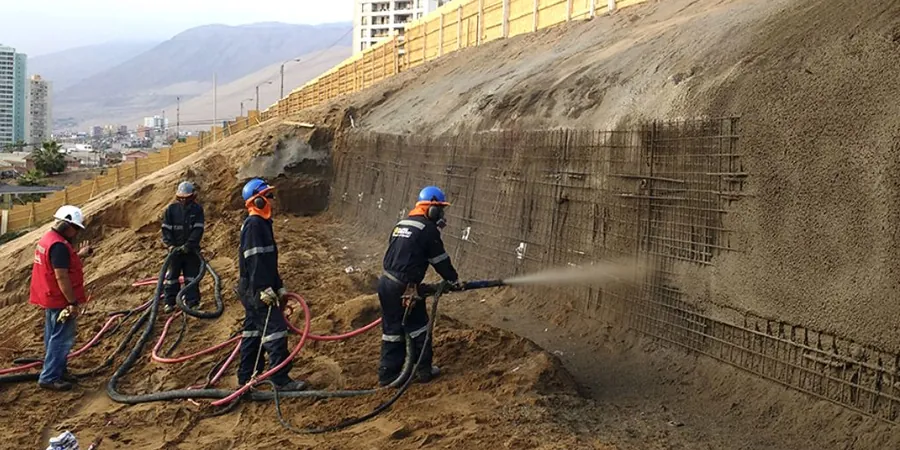

Technical reference image — Auckland
Local considerations
Auckland's geology harbours several failure triggers that slope stability analysis must explicitly address. The Waitemata Group contains smectite-rich clay seams that lose strength upon wetting, particularly in the Parnell and Titirangi areas. Coastal cliffs from Devonport to Takapuna experience toe erosion at rates up to 0.3 m/year, progressively reducing resisting moments. Construction-induced loading from residential developments on the volcanic ring plain can reactivate ancient landslide complexes. Liquefaction of loose volcanic ash layers during seismic events amplifies lateral spreading. The combination of these factors means a simple two-dimensional analysis often underestimates the three-dimensional kinematics of rotational failures in Auckland's gullies.
Bishop, Spencer, and Janbu methods with automatic search for critical failure surfaces. Sensitivity analysis for groundwater, surcharge, and seismic loads.
02
Finite Element & Finite Difference Modelling
PLAXIS 2D/3D and FLAC simulations for progressive failure, strain-softening behaviour, and soil-structure interaction in Auckland's diverse terrain.
03
Probabilistic Stability Assessment
Monte Carlo and first-order second-moment (FOSM) methods to quantify uncertainty in shear strength, pore pressure, and seismic coefficients.
04
Remedial Design & Monitoring
Design of soil nails, anchored walls, drainage systems, and erosion protection. Integration with inclinometer and piezometer monitoring arrays.
What factor of safety is required for slope stability in Auckland?
For static conditions under NZS 4203, a minimum factor of safety of 1.5 is required for long-term stability. For seismic pseudo-static analysis (NZS 1170.5), the minimum acceptable is 1.1. Critical slopes near schools, hospitals, or main transport corridors may require 1.6 or higher depending on consequence classification.
How does Auckland's volcanic geology affect slope stability analysis?
Volcanic ash and tuff deposits in Auckland exhibit meta-stable behaviour — they lose strength rapidly upon wetting or disturbance. The presence of paleosols and buried peat layers creates weak interfaces. The analysis must use effective stress parameters from triaxial testing on undisturbed samples, and account for anisotropic permeability that channels groundwater along old lava flow boundaries.
What is the typical cost of a slope stability study in Auckland?
The cost for a detailed slope stability analysis in Auckland ranges between NZ$2,140 and NZ$6,970, depending on slope complexity, number of sections analysed, and whether numerical modelling (FEM/FDM) is required. This includes field inspections, laboratory testing, limit equilibrium analysis, and a geotechnical report with recommendations.
When is 3D slope stability analysis necessary instead of 2D?
Three-dimensional analysis becomes essential when the failure geometry is constrained by lateral boundaries — such as slopes in narrow gullies, slopes with curved crests, or where adjacent excavations create corner effects. In Auckland's volcanic cones and coastal cliffs, 2D plane-strain models can overestimate the factor of safety by 15–25% if end effects are ignored.
