A common mistake we see in Auckland construction is assuming that a standard bored pile works everywhere. In the volcanic soils of the Auckland Volcanic Field, you get basalt boulders, cemented tuff layers, and old lava tubes that make conventional drilling unreliable. That is where micropile design becomes the practical alternative. Instead of fighting with oversized rigs and lost tooling, we install small-diameter piles that transfer load through skin friction and end bearing into competent strata. For projects near the Waitemata Harbour, we often combine this approach with a tomografía sísmica survey to map hidden rockhead variability before finalizing the layout.
In Auckland's volcanic terrain, a 200 mm diameter micropile can carry over 400 kN if the bond zone is correctly designed through the East Coast Bays sandstone.
Methodology and scope
We design micropiles in Auckland following NZS 3404 for steel capacity and NZGS 2016 guidelines for geotechnical strength. The volcanic geology here demands particular attention to bond zone length, especially when drilling through the East Coast Bays Formation where sandstone and siltstone interbeds affect grout-to-ground adhesion. Each design starts with site-specific soil parameters from laboratory testing. We use ensayo triaxial to measure undrained shear strength in clay layers and clasificación de suelos by USCS to confirm soil type. The results feed into a simplified calculation of ultimate capacity per pile, then we apply NZS 4203 load factors for seismic and static conditions.

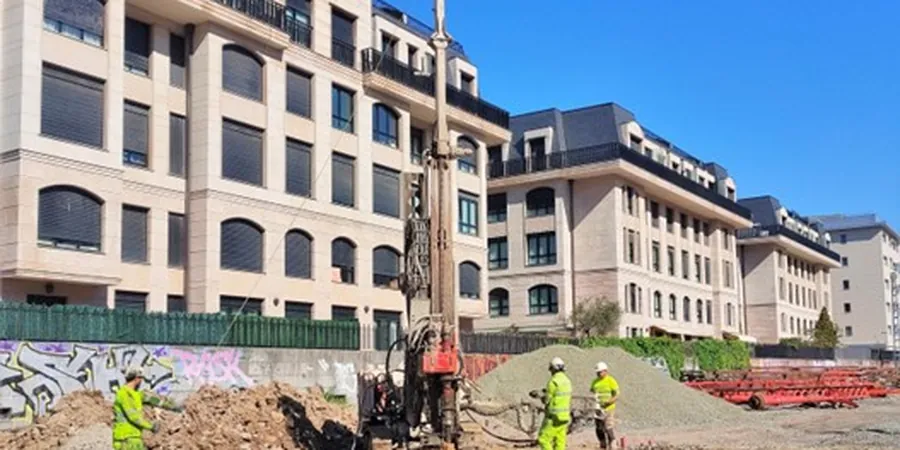

Technical reference image — Auckland
Local considerations
In Auckland, we often see contractors underestimate the effect of groundwater flow on grout placement during micropile installation. When drilling through the permeable sands of the Waitemata Group, a sudden inflow can wash out the cement before it sets, creating voids that reduce capacity by 30% or more. Another issue is neglecting the seismic demand on pile-to-structure connections. The NZS 4203 ductility requirements mean the connection detail must allow for rotation without fracture. We address both by specifying a tremie grouting method and verifying connection capacity with a factor de seguridad of at least 2.0 under ultimate loads.
Borehole drilling with SPT and undisturbed sampling to determine soil stratigraphy, groundwater table, and strength parameters. Includes laboratory testing for shear strength and consolidation.
02
Structural Load Calculation & Connection Design
Design of steel reinforcement, grout mix, and pile cap connection to meet ULS and SLS requirements per NZS 3404. We provide signed design reports suitable for building consent.
03
Field Load Testing & Verification
Static compression or tension testing per NZS 4402 to verify design assumptions. We use calibrated hydraulic jacks and electronic instrumentation for real-time data logging.
Applicable standards
NZS 3404:1997 (Steel structures standard), NZGS 2016 – Geotechnical earthquake engineering guidelines, NZS 4402/D1143M – Standard test method for piles under static axial compressive load
Frequently asked questions
When should I choose micropile design over conventional bored piles in Auckland?
Micropile design is the right choice when access is restricted, headroom is low, or the ground contains boulders from the Auckland Volcanic Field. It also works well for seismic retrofitting of existing structures where vibration must be minimized.
What is the typical cost range for micropile design and installation in Auckland?
The typical cost range is between NZ$2.240 and NZ$8.110 per pile, depending on depth, ground conditions, and load requirements. A detailed quotation is provided after the geotechnical investigation.
How long does the micropile design process take from site investigation to final report?
Typically 3 to 5 weeks, including drilling, laboratory testing, structural calculations, and peer review. The timeline can be shortened if existing soil data is available.
Location and service area
We serve projects across Auckland and its metropolitan area.
