A recent project in the Parnell ridge involved a 6 m excavation for a mixed-use development, where the existing slope had experienced localised slumping after heavy rainfall. The client needed a retaining wall design that could handle both active earth pressures and the perched water table common in Auckland's East Coast Bays Formation. We modelled the wall using the NZGS guidelines and NZS 3404 for steel sections, integrating a geotechnical drainage system to manage pore pressure behind the stem and a subsurface exploration campaign to verify soil strength parameters at depth.
For walls over 3 m in Auckland claystone, drained parameters can reduce required reinforcement by up to 25 % compared to undrained assumptions.
Methodology and scope
In Auckland, many engineers assume drained conditions for retaining walls, but the reality is different. The volcanic ash layers and residual claystones in areas like Remuera and Mount Eden retain moisture long after rain, reducing effective stress and increasing lateral loads. Our design approach includes:
Limit equilibrium analysis with Bishop's method for global stability
Seismic coefficient of 0.13g per NZS 4203 for ULS
Drainage specification with geocomposite strips and weep holes
We also run both short-term undrained and long-term drained checks to match Auckland's wet-dry seasonal cycle. The retained soil blocks are often underconsolidated, so we recommend compaction grouting where loose fill is encountered.

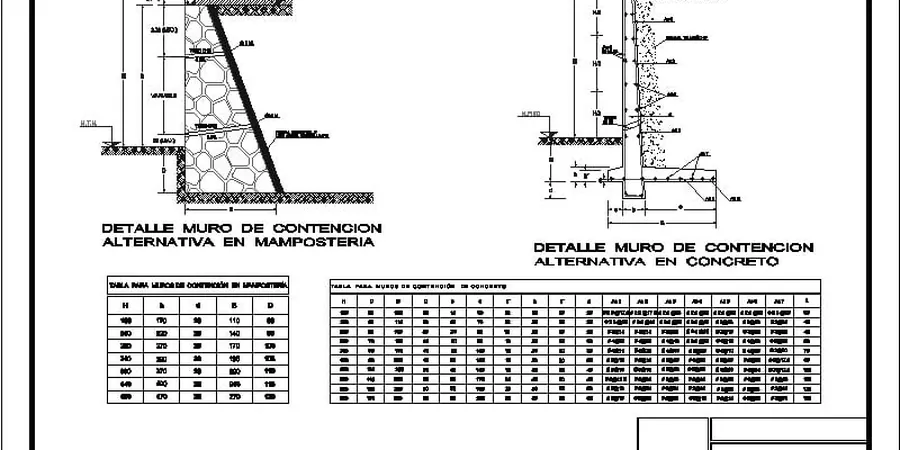

Technical reference image — Auckland
Local considerations
Auckland sits on the Auckland Volcanic Field, with over 50 monogenetic cones. The residual soils from basalt flows and tephra deposits have variable strength and high shrink-swell potential. A retaining wall design that ignores these clay mineralogy changes risks long-term creep and wall face displacement. We also factor in the risk of liquefaction in the reclaimed land along the Waitematā Harbour, where loose sands can settle under shaking and increase lateral pressures on the wall. The NZGS guidelines recommend a minimum factor of safety of 1.5 for static loading and 1.1 for seismic, which we apply strictly.
What is the typical cost range for retaining wall design in Auckland?
The cost for a geotechnical retaining wall design in Auckland typically falls between NZ$1,960 and NZ$6,650, depending on wall height, site access, and the number of soil borings required. Final pricing is confirmed after a site walkover.
How does the Auckland volcanic soil affect wall design?
Volcanic ash and tephra layers have high silt content and can become plastic when wet. This reduces the effective friction angle and increases active earth pressure. We use saturated triaxial tests on undisturbed samples to capture these conditions.
Do I need a geotechnical report before designing a retaining wall?
Yes. The NZGS guidelines require a site investigation to determine soil strength, groundwater levels, and seismic hazard. Without it, the wall may be under-designed or over-designed, both of which carry cost and safety implications.
What drainage measures do you recommend for Auckland walls?
We specify a 300 mm gravel drainage blanket connected to a perforated pipe at the wall base. In clay-rich soils, we add a geocomposite strip drain every 2 m vertically to prevent hydrostatic pressure build-up behind the stem.
Location and service area
We serve projects across Auckland and its metropolitan area.
