Auckland's volcanic soils and high annual rainfall create a unique challenge for earthworks contractors. The region's clay-rich subgrades, particularly around the Isthmus and North Shore, can lose density rapidly when moisture fluctuates. That is why the field density test (sand cone method) is a routine requirement on Auckland projects. Before placing pavement layers or backfilling retaining structures, teams use this in-situ test to confirm that compacted fill meets specified dry density. Combining it with a granulometry analysis helps correlate particle distribution with achievable compaction, while a CBR test validates subgrade strength for road designs across the city.
A single sand cone test can prevent differential settlement of up to 50 mm in an Auckland residential pavement.
Methodology and scope

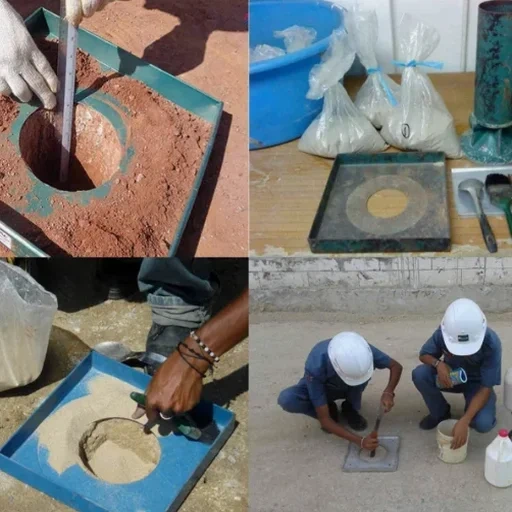

The sand cone method follows NZS 4402 and is widely accepted in Auckland for its simplicity and direct measurement of in-place density. The procedure involves excavating a small test hole, collecting the soil, and filling the hole with calibrated sand to determine volume. Field density test results are compared against the maximum dry density obtained from a standard Proctor test (NZS 4402:1986). In Auckland's variable geology — from Waitemata sandstone to alluvial deposits along the Manukau Harbour — this method provides a reliable snapshot of compaction quality. The test is especially useful when verifying subgrade preparation for flexible pavements and ensuring that engineered fills meet design specifications for residential subdivisions or commercial developments. The equipment is portable, the procedure is non-destructive to the surrounding area, and the data can be processed on-site within minutes.

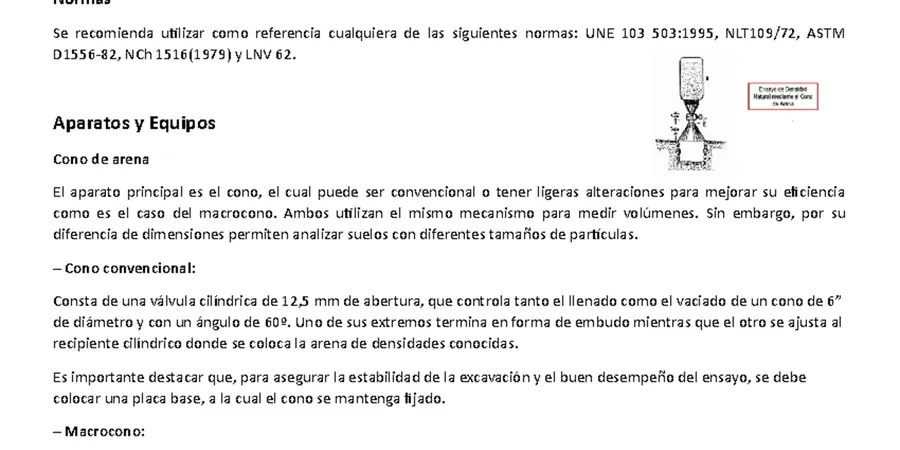

Technical reference image — Auckland
Local considerations
A common mistake on Auckland construction sites is relying solely on nuclear gauge readings without cross-checking with the sand cone method. Nuclear gauges can give inflated density values in moist volcanic clays. If compaction is under-reported, the fill may settle under traffic loads or building weight, leading to cracked slabs and uneven pavements. Skipping the field density test on a backfilled retaining wall in Ponsonby or a road embankment in Flat Bush invites costly repairs. The sand cone method remains the benchmark for verifying density in Auckland's challenging ground conditions.
On-site density measurements for earthworks fills, trench backfill, and pavement layers. Results include dry density, moisture content, and percentage compaction relative to Proctor maximum.
02
Compaction Verification Programs
Custom testing schedules for large-scale developments. We coordinate with your crew to test lifts at specified intervals and provide same-day reporting.
03
Nuclear Gauge Correlation
Sand cone tests used to calibrate nuclear density gauges for ongoing quality control. Ensures consistent readings across a project's duration.
Applicable standards
NZS 4402 – Standard Test Method for Density and Unit Weight of Soil in Place by Sand-Cone Method, NZS 4402:1986 – Methods of Testing Soils for Civil Engineering Purposes, NZTA T/1 – Specification for Compaction of Earthworks
Frequently asked questions
How much does a field density test cost in Auckland?
A standard sand cone test in Auckland typically costs between NZ$160 and NZ$220 per test, including on-site labor and laboratory moisture determination. Volume discounts apply for projects requiring 20 or more tests.
When should I use the sand cone method instead of a nuclear gauge?
Use the sand cone method when you need a direct, non-radiometric measurement, especially on clay-rich soils where nuclear gauges can be inaccurate. It is also preferred for small test areas or where radiation safety is a concern.
Can the sand cone test be used on wet or saturated fills?
The reference range for this service in Auckland is NZ$160 - NZ$220. The final price depends on the project scope and volume.
What is the minimum number of tests required for a typical Auckland subdivision?
Most Auckland council compliance plans require one field density test per 200 m² of fill area for each lift, with a minimum of three tests per layer. Your engineer will specify exact frequency based on the compaction specification.
Location and service area
We serve projects across Auckland and its metropolitan area.
