With over 1.6 million people, Auckland sits on a complex mix of Waitemata Group sandstone and siltstone (East Coast Bays Formation), volcanic basalt flows, and extensive reclamation fills along the waterfront. An exploratory test pit is the most direct way to see what you are building on. We dig a trench, log the soil profile in situ, and take undisturbed samples for lab testing. Before committing to a foundation type, it pays to correlate pit logs with capacidad de carga calculations and to check the estabilidad taludes if your site slopes toward a gully. This method gives you a visual record that boreholes cannot match.
A single exploratory test pit can reveal fill thickness, root zones, and perched water that no borehole log would ever capture.
Methodology and scope
Auckland's urban expansion since the 1950s pushed development onto soft alluvial flats in places like Mangere, Onehunga, and the Whau River catchment. The typical test pit in these areas reaches 3 to 4.5 m depth, exposing layers of soft clay, peat, and anthropogenic fill. We log each stratum according to NZS 4402 (visual-manual procedure), measure the depth to groundwater if present, and extract block samples for classification tests. The data feeds directly into bearing capacity estimates and settlement predictions. For deeper profiles or when access is tight, we recommend combining pits with a tomografia sismica survey to interpolate between excavation points.

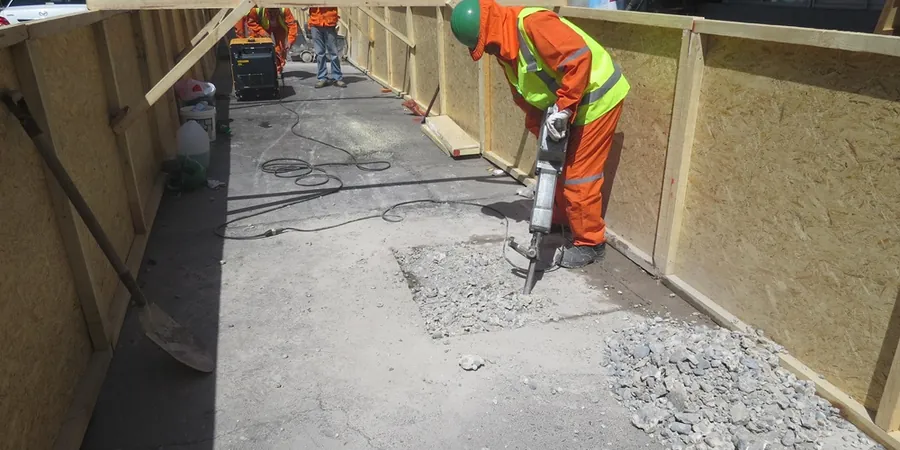

Technical reference image — Auckland
Local considerations
The biggest geological contrast in Auckland is between the volcanic cones (Mt Eden, Three Kings) and the low-lying isthmus. A test pit on a basalt flow may hit hard rock at 1 m, while 2 km away in a swampy valley you might find 5 m of soft compressible clay. If you build on the wrong ground without an exploratory test pit, you risk differential settlement, slab cracking, or even foundation failure during a seismic event. We have seen houses on the North Shore that settled 80 mm because the fill layer was never identified.
Ideal for single-house sites on the North Shore or in South Auckland. We dig 2–4 pits to confirm founding depth, check for fill, and classify the soil. Report includes logs, bearing capacity estimate, and foundation recommendations.
02
Commercial & Subdivision Bulk Excavation Pits
For larger sites – subdivisions in Pukekohe or commercial lots in the CBD. We excavate 6–12 pits across the site, sample each stratum, and provide a 3D ground model. Combined with geophysical surveys for full coverage.
03
Slope & Cut Stability Pits
When building on a slope in the Waitakere Ranges or along a coastal cliff, test pits reveal the actual soil/rock interface, root penetration, and water seepage paths. Essential for retaining wall design and slope stability analysis.
Applicable standards
NZS 4402 (Standard Practice for Description and Identification of Soils – Visual-Manual Procedure), NZS 4402 (Methods of Testing Soils for Civil Engineering Purposes), NZGS 2005 Guideline: Field Description of Soil and Rock, Auckland Council TP 138 – Geotechnical Investigation Requirements
Frequently asked questions
What is the difference between an exploratory test pit and a borehole?
A test pit lets you see the soil profile directly, photograph it, and take undisturbed block samples. Boreholes give you a continuous core but cannot show lateral changes, root holes, or fill lenses as clearly. For shallow foundations (up to 4.5 m) in Auckland's variable ground, a test pit is often more cost-effective and informative than a borehole.
How much does an exploratory test pit cost in Auckland?
A standard test pit investigation for a residential lot, including logging, sampling, and a basic lab test suite, ranges between NZ$910 and NZ$1,350 depending on site access, number of pits, and required lab scope. Commercial-scale investigations are quoted per pit with volume discounts.
Do I need consent to dig a test pit in Auckland?
Yes, if the pit is deeper than 1.5 m or within 3 m of a building, boundary, or service line, you need a Geotechnical Investigation Consent from Auckland Council. We handle the paperwork and notify before digging. Shallow hand-dug pits on open land may not require consent, but we always check with Council first.
Location and service area
We serve projects across Auckland and its metropolitan area.
