Auckland sits on a complex geological mosaic dominated by Waitemata Group sandstones and siltstones, with extensive alluvial deposits in the isthmus and volcanic basalt flows from the Auckland Volcanic Field. This means subgrade conditions vary drastically within a single kilometer. For any pavement design here, understanding the in-situ strength and moisture sensitivity of the subgrade is non-negotiable. We combine dynamic cone penetration (DCP) surveys with laboratory CBR testing to profile the subgrade correctly. Before specifying pavement layers, we often run a placa de carga test to verify the modulus of reaction directly on the prepared subgrade.
Subgrade CBR in Auckland can vary from under 2% in marine clays to over 15% in volcanic ash within the same road alignment.
Methodology and scope
A common mistake we see on Auckland road projects is assuming the subgrade CBR is uniform across the site. The volcanic ash layers in areas like Mount Roskill or the soft marine clays along the Waitemata Harbour can produce CBR values ranging from under 2% to over 15% in the same alignment. Without a thorough geotechnical investigation, pavement designs either over-engineer the structure or fail prematurely. We use a phased approach: first, a network of calicatas exploratorias to log soil types and depths, followed by particle size distribution and Atterberg limits on each distinct horizon. The final pavement thickness design follows Austroads guidelines, but we calibrate the inputs to Auckland-specific subgrade stiffness data.

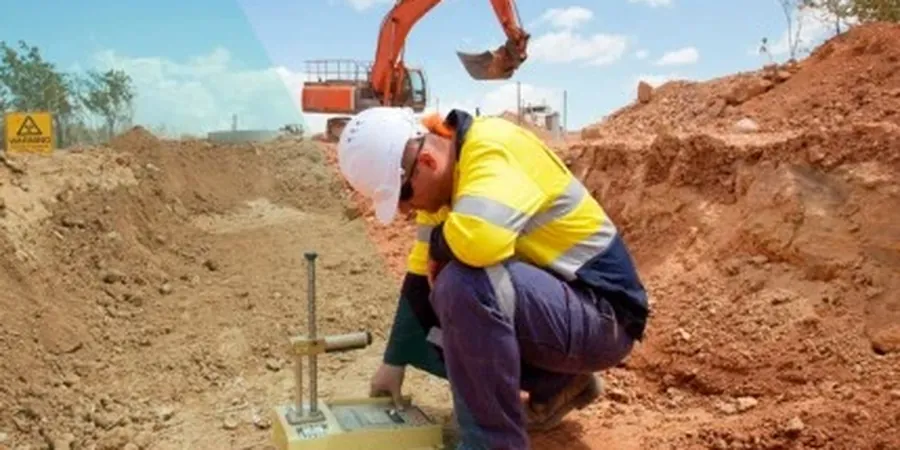

Technical reference image — Auckland
Local considerations
Comparing the volcanic basalt subgrades in Mount Eden with the soft estuarine deposits in Hobsonville reveals why a one-size-fits-all pavement design fails in Auckland. On basalt-derived soils, we often see high CBR values that tempt designers to reduce pavement thickness, but the risk of differential settlement across the interface with adjacent alluvial soils is real. In Hobsonville, the high water table and compressible clays demand a different approach: we recommend preloading with vertical drains or lime stabilization to improve the subgrade before placing the pavement. The cost of repairing a failed pavement on soft ground in Auckland easily triples the initial construction budget.
In-situ DCP testing and dynamic cone penetration at regular intervals along the road alignment, combined with laboratory soaked CBR tests on undisturbed samples. We correlate DCP blow counts directly to CBR using local calibrations from Auckland projects.
02
Pavement Material Selection and Quality Control
We evaluate borrow sources for subbase and base course materials, performing compaction curves (modified Proctor), particle size distribution, and Los Angeles abrasion tests. Our team also conducts field density tests using the sand cone method during construction placement.
03
Geotechnical Design for Pavement Layers
Using Austroads mechanistic-empirical design methods, we calculate required pavement thicknesses based on subgrade CBR, traffic loading, and reliability level. We also assess drainage requirements and provide recommendations for subgrade improvement techniques like cement stabilization or geotextile separation.
Applicable standards
Austroads Guide to Pavement Technology (Parts 2, 4, 5), NZS 4404:2010 (Land Development and Subdivision Infrastructure), NZ Transport Agency (NZTA) Pavement Design Manual (SM040, SM050), NZS 4402 (CBR Test for Laboratory-Compacted Soils)
Frequently asked questions
What is the typical cost range for a road geotechnics study in Auckland?
The cost for a road geotechnics investigation in Auckland typically ranges from NZ$1,200 to NZ$6,470, depending on the length of the road alignment, the number of test pits and CBR samples required, and the complexity of subgrade conditions. This includes field testing, laboratory work, and a design report.
How do Auckland's volcanic soils affect pavement design?
Auckland's volcanic soils, particularly the basaltic clays and tephra layers, can have high CBR values when dry but lose strength rapidly when saturated. The high plasticity index (PI often above 25) makes them susceptible to shrinkage and swelling with moisture changes. Pavement design must account for this by specifying a thicker granular subbase or incorporating a moisture barrier.
Do I need a geotechnical report for a small residential driveway in Auckland?
For a simple residential driveway on stable ground, a full geotechnical report may not be required by council. However, if the driveway crosses areas with known soft ground, fills, or slopes steeper than 1:4, a subgrade assessment is strongly recommended. We can perform a low-cost DCP survey and CBR test to verify the design.
What is the difference between soaked and unsoaked CBR?
Soaked CBR measures the strength of the subgrade after four days of water immersion, simulating the worst-case moisture condition after heavy rain. Unsoaked CBR tests the soil at its natural moisture content. In Auckland's wet climate, soaked CBR is the standard for pavement design because it reflects the condition the subgrade will experience during service life.
How long does a road geotechnics investigation take in Auckland?
A standard investigation for a residential subdivision road typically takes 2 to 4 weeks from field testing to final report. Larger arterial road projects with multiple test pits and laboratory work can take 6 to 8 weeks. We prioritize sites with urgent construction schedules.
