On a typical morning in Auckland, you’ll see concrete trucks queued at the Botany Road intersection waiting to pour a new rigid pavement section. The slipform paver we mobilise for these jobs handles slabs up to 7.5 m wide in a single pass, which is critical when you’re working within the tight lane closures common on State Highway 1. Before the first cubic metre is placed, we run a full subgrade assessment — CBR and plate load tests — because the underlying Waitematā Group sandstone and East Coast Bays Formation siltstone vary laterally within metres. That variability is why a standard empirical thickness chart won’t cut it here. We rely on mechanistic-empirical methods calibrated to Auckland’s actual traffic spectrum, which for the Northern Corridor means up to 45 million ESALs over the design life. The concrete mix itself is specified with a flexural strength of 4.5 MPa at 28 days, and we verify it with beam tests from every third batch. It’s a process that demands coordination between the paving crew, the batch plant, and our own field technicians — and we’ve been doing it long enough to know where the hidden delays hide.
For Auckland’s volcanic soils, we specify a 150 mm cement-treated sub-base with 1.8 MPa UCS — it saves 15 mm of slab thickness.
Methodology and scope
Auckland’s subtropical climate — around 1,200 mm of rain per year — creates a specific challenge for rigid pavement design that you don’t see in drier regions. The constant wetting and drying cycles in the volcanic ash soils (tuff and scoria deposits from the Auckland Volcanic Field) cause differential heave if the subgrade isn’t properly stabilised. We handle this by specifying a 150 mm cement-treated sub-base with a 7‑day unconfined compressive strength of 1.8 MPa, which also reduces the slab thickness by about 15 mm compared to untreated sections. For drainage, we incorporate edge drains connected to the city’s stormwater network at 15‑m spacing, because standing water under the joints accelerates pumping and faulting. In areas with soft alluvial clays near the Waitematā Harbour, we sometimes need to replace the top 600 mm of soil or apply a preload and surcharge programme before the rigid pavement can be placed. The design itself follows the Austroads mechanistic-empirical procedure, but we always cross-check it with the Portland Cement Association slab analysis for corner loads — a step that field performance in Auckland has proven necessary. Joint spacing is standardised at 4.6 m, but we reduce it to 3.8 m at roundabouts and bus stops to control cracking from turning loads.

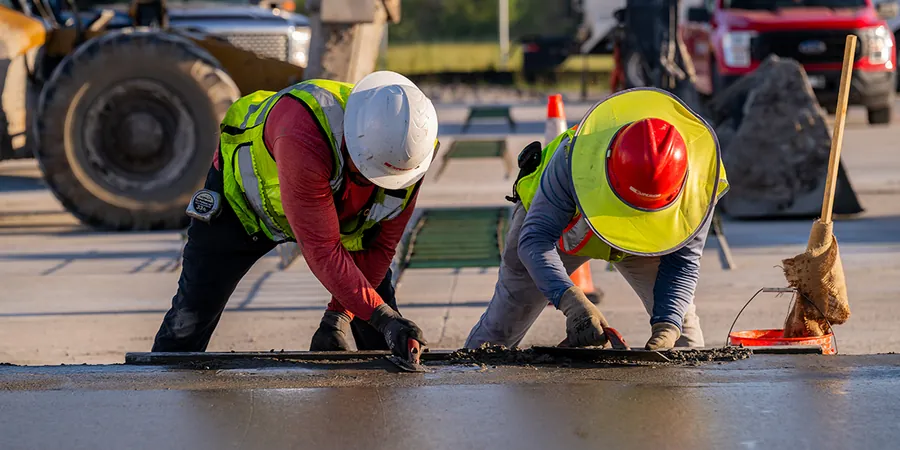

Technical reference image — Auckland
Local considerations
We saw a job on Dominion Road a few years back where the original rigid pavement design assumed a uniform subgrade modulus of 80 MPa/m. After the first 200 m of concrete was placed, the contractor hit a pocket of peat — left over from a former swamp that wasn’t in the historical maps. The slab started cracking within three weeks because the support under the joint was half of what was assumed. Our team had to come in, core the failed panels, run falling weight deflectometer tests, and redesign the remaining section with a 300 mm lean concrete base over the peat zone. That experience taught us to always request a ground‑penetrating radar survey and probe holes at 50‑m intervals when there’s any record of reclaimed land. In Auckland, the risk isn’t just the volcanic soils — it’s the hidden organic layers that earlier generations didn’t document properly.
In‑situ CBR, DCP, and plate load tests on Auckland’s volcanic and alluvial soils. We also run laboratory soaked CBR and swell tests for the wet season design scenario.
02
Mechanistic-empirical slab design
Full thickness design using Austroads Part 2, with joint layout, dowel bar sizing, and tie bar spacing. Output includes construction drawings and stress checks for corner and edge loads.
03
Quality control during paving
Field flexural beam testing (NZS 4402), slump checks, air content, and joint saw‑cut timing. We also monitor concrete temperature to avoid thermal cracking during Auckland’s summer pours.
Applicable standards
NZS 3404:1997 (structural steel — referenced for dowel bar design), Austroads Guide to Pavement Technology Part 2: Pavement Structural Design (2017), Portland Cement Association: Thickness Design for Concrete Highways and Street Pavements, NZS 4402/D1195M — Standard Test Method for Repetitive Static Plate Load Tests
Frequently asked questions
What is the typical design life for a rigid pavement in Auckland?
For major arterial roads like the Northwestern Motorway or Dominion Road, we design for 30 to 40 years. The actual life depends on traffic growth (ESALs), subgrade support, and joint maintenance. With proper load transfer and drainage, 50 years is achievable.
How much does a rigid pavement design study cost in Auckland?
A full design study — including subgrade testing, structural analysis, and drawings — typically ranges between NZD 3,220 and NZD 9,180. The variation depends on the number of test locations, traffic data complexity, and whether you need a pavement management plan.
What joint spacing works best for bus routes and intersections?
We reduce joint spacing from the standard 4.6 m to 3.8 m at bus stops, roundabouts, and signalised intersections. This lowers the tensile stress from turning and braking loads, reducing the risk of mid‑panel cracking. Dowel bars are always included at these locations.
Location and service area
We serve projects across Auckland and its metropolitan area.
