With over 1.7 million residents and a growing skyline, Auckland sits on a complex mix of young volcanic basalt, soft alluvial sediments, and stiff Waitemata Group sandstone. The 1968 Īnangahua earthquake (magnitude 7.1) reminded engineers that seismic loads here demand careful foundation thinking. For mid-rise and high-rise projects, pile foundation design becomes the preferred solution to bypass weak surface layers and deliver load directly to competent strata. Before mobilizing a rig, we always complement the geotechnical investigation with a georradar GPR survey to map buried boulders and voids, and a MASW Vs30 profile to characterize seismic site class as per NZS 1170.5.
In Auckland, the biggest risk is not the pile capacity itself but the variability between adjacent boreholes — a single boulder can alter the whole foundation strategy.
Methodology and scope
Auckland’s soil profile varies dramatically between suburbs. In Ponsonby, you might hit stiff residual clay from weathered sandstone at 3 m, while in Hobsonville or Whenuapai you can find 15 m of soft volcanic ash and peat over dense alluvium. That contrast forces us to tailor each pile foundation design to the exact stratigraphy. We typically perform:
Boreholes with SPT (AS/NZS 1289.6.3.1) every 1.5 m to log strength and liquefaction susceptibility
Piezocone (CPTu) for continuous tip resistance in soft soils
Laboratory triaxial CU tests (NZS 4402) on undisturbed samples from the critical depth
Once the data is in, we model axial and lateral capacity using methods by Poulos & Davis and the NZGS guidelines. For projects near the volcanic cones, we also run a microtremor HVSR survey to identify resonance frequencies that could affect tall slender piles.

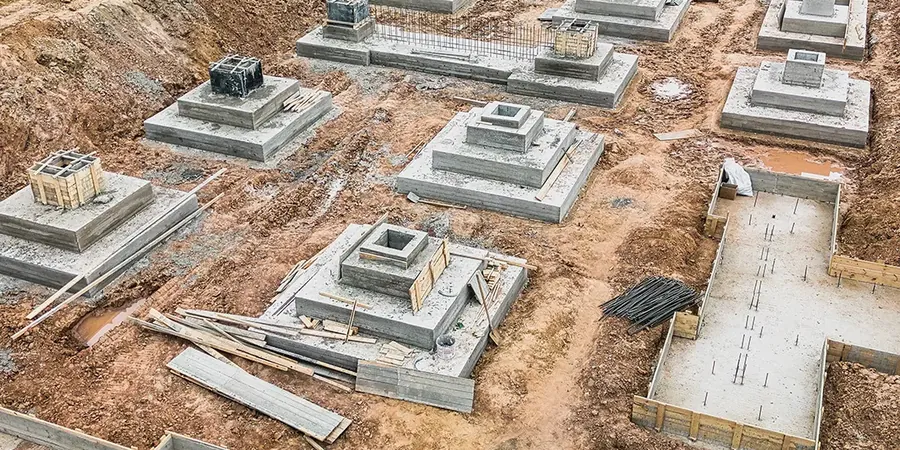

Technical reference image — Auckland
Local considerations
The rapid suburban expansion of Auckland since the 1990s pushed development onto marginal land: reclaimed harbors, old landfills, and former wetlands. These zones hide soft organic layers, pockets of methane, and variable fill that can cause differential settlement if the pile foundation design does not account for negative skin friction. We have seen cases where a 600 mm bored pile hit refusal on a basalt boulder at 4 m, while the adjacent hole went to 14 m. That variability is the norm here, not the exception. Our approach always includes a proactive ground improvement via vibrocompaction when loose sands are encountered near the pile toe.
Selected based on soil profile, noise restrictions, and load magnitude
Design method
Effective stress (β-method) or total stress (α-method) per NZGS 2015
Axial capacity (compression)
1,200 kN – 6,500 kN per pile, depending on diameter and stratum
Lateral capacity (at 10 mm head deflection)
80 kN – 350 kN, verified with p‑y curves from Reese & Van Impe
Settlement (serviceability limit state)
Target ≤ 15 mm for typical Auckland commercial buildings
Seismic ductility factor (µ)
1.25 – 2.5 per NZS 4203, depending on foundation type and soil class
Associated technical services
01
Geotechnical Site Investigation for Piles
Rotary boreholes with continuous SPT sampling, undisturbed tube sampling in cohesive layers, and in‑situ vane shear tests (NZS 4402) where soft clay is present. All samples are logged by an Engineering Geologist and tested in our ISO 17025 accredited laboratory for classification, strength, and consolidation parameters.
02
Pile Capacity Analysis & Design Report
Using the NZGS guideline and the methodology by Poulos & Davis, we calculate ultimate shaft and base resistance for driven piles (steel or precast concrete) and bored cast‑in‑place piles. The report includes load‑settlement curves, group efficiency factors, and seismic demand checks per NZS 4203.
03
Liquefaction & Lateral Spreading Assessment
For sites near the Manukau Harbour or the Waitematā, where loose saturated sands are common, we evaluate liquefaction triggering using the Youd‑Idriss (2001) approach. If the factor of safety falls below 1.3, we recommend mitigation measures such as stone columns or deep soil mixing to improve the foundation performance.
Applicable standards
NZS 4203:1992 (General structural design and design loadings – seismic provisions), NZS 1170.5:2004 (Structural design actions – earthquake actions), NZGS guideline: Pile foundation design (2015), ACI 543R-12 (Design, manufacture, and installation of concrete piles)
Frequently asked questions
What is the typical cost range for a pile foundation design in Auckland?
For a standard commercial project with 4–6 boreholes and laboratory testing, the fee for the geotechnical investigation plus design report typically falls between NZ$2,810 and NZ$9,290. The final cost depends on the number of boreholes, pile type, and site accessibility.
How deep do piles usually go in Auckland's volcanic soils?
In areas underlain by the Auckland Volcanic Field, piles often reach 8 m to 14 m to seat into dense basalt or firm Waitemata sandstone. In the alluvial flats of South Auckland, driven piles can go 18 m to 25 m to bypass soft estuarine clays. The exact depth is determined from the CPT and SPT profile during the investigation.
What is the difference between a driven pile and a bored pile for Auckland conditions?
Driven piles (steel H‑section or precast concrete) are fast to install and work well in granular soils, but they generate vibration and noise, making them unsuitable for dense residential areas like Parnell or Grey Lynn. Bored piles (CFA or rotary) produce minimal vibration and can be installed in stiff clay or rock, but they require careful concreting under bentonite or polymer slurry in caving ground.
Do I need a seismic site response analysis before designing piles in Auckland?
Yes, if the building is Importance Level 2 or higher (most commercial and multi‑unit residential buildings). NZS 1170.5 requires the site to be classified into one of five subsoil classes (A to E). For deep soft soils — typical of the Auckland isthmus — a site‑specific response analysis using Vs30 profiles or a 1D SHAKE analysis is often needed to capture amplification effects that affect pile ductility demand.
Location and service area
We serve projects across Auckland and its metropolitan area.
