Auckland's volcanic and sedimentary geology creates challenging conditions for deep excavations. Many projects here encounter the East Coast Bays Formation — alternating sandstone and mudstone layers — alongside the more recent Tauranga Group alluvial deposits. This variability demands careful ground characterization before any design work begins. A thorough site investigation typically combines borehole logging with geophysical methods to map the soil profile accurately. For deep excavations in the CBD, where adjacent buildings sit on older foundations, the interaction between new shoring and existing structures becomes a critical design parameter. The team often pairs this analysis with a tomografía sísmica survey to detect hidden anomalies in the rock mass, and a monitoreo de excavaciones plan to track wall movements in real time.
Auckland's volcanic ash layers compress under load, so deep excavation designs must account for consolidation settlements that can affect adjacent structures for months after construction.
Methodology and scope
Design follows NZS 3404 and NZGS 2016 guidelines for retaining walls and shoring systems. Auckland's relatively high water table — often encountered just 3-4 meters below surface — means dewatering and drainage design are inseparable from the structural analysis. The design process covers several stages:
Determining lateral earth pressures using Rankine or Coulomb theories, adjusted for seismic conditions per NZS 4203
Selecting support systems — soldier piles with lagging, secant pile walls, or diaphragm walls — based on depth and adjacent loads
Verifying global stability through limit equilibrium methods and checking for basal heave in soft clays
Groundwater control often requires a drenaje geotécnico scheme to prevent piping and maintain base stability during excavation.

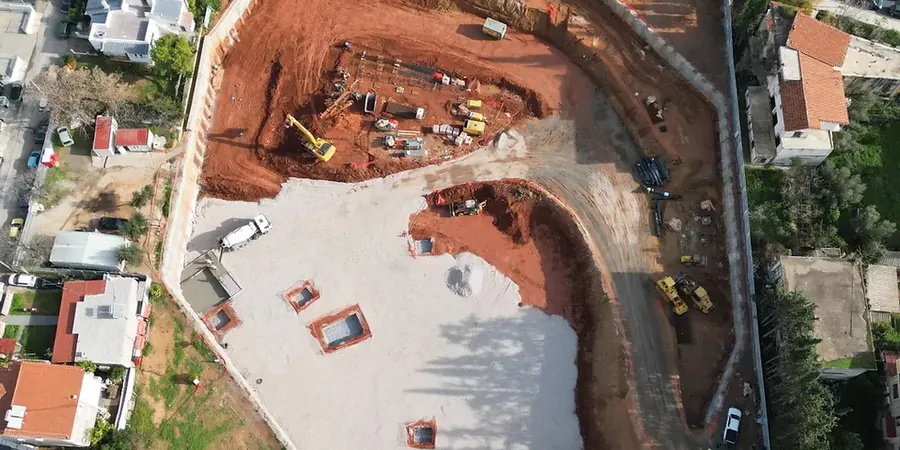

Technical reference image — Auckland
Local considerations
A recent 12-story basement project on Queen Street encountered a buried volcanic fissure that had not been identified in the initial boreholes. The fissure acted as a groundwater conduit, causing a sudden inflow that undercut the temporary shoring wall. The design team had to install additional tieback anchors and a deep dewatering well field to regain control. This scenario is not uncommon in Auckland — the Waitemata Group sandstones often contain hidden fractures, and the volcanic field has numerous buried craters and lava tubes. A solid instrumentation program using inclinometers and piezometers is essential to detect early signs of instability before they escalate into failures that could delay the project for weeks.
Design of soldier pile walls, sheet pile walls, and secant pile walls for temporary and permanent applications. Includes selection of anchor systems or internal bracing, verification of lateral capacity, and integration with dewatering plans. All designs comply with NZS 3404 and NZGS guidelines for Auckland's volcanic and sedimentary soils.
02
Groundwater Control and Stability Analysis
Assessment of seepage conditions and design of dewatering systems — wellpoints, deep wells, or cut-off walls. Stability analysis using limit equilibrium methods to check basal heave, piping, and global failure. Includes monitoring recommendations with piezometers and flow meters to manage risks during excavation.
Applicable standards
NZS 3404:1997 (Steel structures – retaining walls), NZS 4203:1992 (General structural design – seismic provisions), NZGS 2016 (Deep excavation design guideline), Eurocode 7 (EN 1997-1:2004) – for limit state design
Frequently asked questions
What is the typical cost range for geotechnical design of deep excavations in Auckland?
For a standard basement excavation (8-12 m depth) with shoring design and groundwater control, costs typically range between NZ$3.600 and NZ$14.720, depending on site complexity, number of boreholes, and monitoring requirements. Larger projects or those with difficult ground conditions may exceed this range.
What depth of excavation requires a formal geotechnical design?
In Auckland, any excavation deeper than 1.5 m near a structure or 3 m in open ground should have a formal geotechnical design under NZS 3404 and the Building Act 2004. Deeper excavations — over 6 m — always require a detailed design with numerical modeling and instrumentation.
How does Auckland's volcanic geology affect deep excavation design?
Volcanic ash and basalt layers can be highly variable in thickness and strength, and buried volcanic conduits may channel groundwater. The East Coast Bays Formation contains weak sandstone and mudstone that soften when exposed to air. Design must account for these heterogeneities through staged excavation and real-time monitoring.
What is the difference between temporary and permanent shoring design?
Temporary shoring is designed for short-term use during construction, often using soldier piles and timber lagging with a factor of safety of 1.2–1.3. Permanent shoring must meet durability requirements, resist long-term groundwater pressures, and often uses secant pile walls or diaphragm walls with a factor of safety of 1.5 or higher. Both follow NZS 3404 but permanent designs require more rigorous corrosion protection and drainage provisions.
Location and service area
We serve projects across Auckland and its metropolitan area.
