Auckland sits atop the Waitemata Group sandstone and mudstone, known locally as East Coast Bays Formation. These interbedded layers often contain hidden paleochannels and variable weathering profiles that can surprise unprepared contractors. A GPR (Ground Penetrating Radar) survey in Auckland provides a rapid, non-invasive way to map these subsurface conditions before breaking ground. The method uses high-frequency electromagnetic pulses to detect changes in material density, making it ideal for locating buried pipes, cables, and voids. Unlike trial pits, GPR covers large areas quickly without disturbing the surface.
In Auckland's variable geology, GPR surveys cut weeks off site investigation time by targeting only the areas that need physical testing.
Methodology and scope
The volcanic basalt flows under Mount Eden and One Tree Hill produce strong radar reflections, while the soft alluvial clays of the Tamaki River delta absorb signal energy faster. For a project in the central isthmus, we often pair a GPR survey with a calicatas exploratorias to ground-truth ambiguous anomalies. On the North Shore's coastal sands, the same GPR setup reaches over 3 meters depth. To confirm load-bearing capacity in deeper strata, we recommend combining radar results with an ensayo SPT for direct strength measurements.

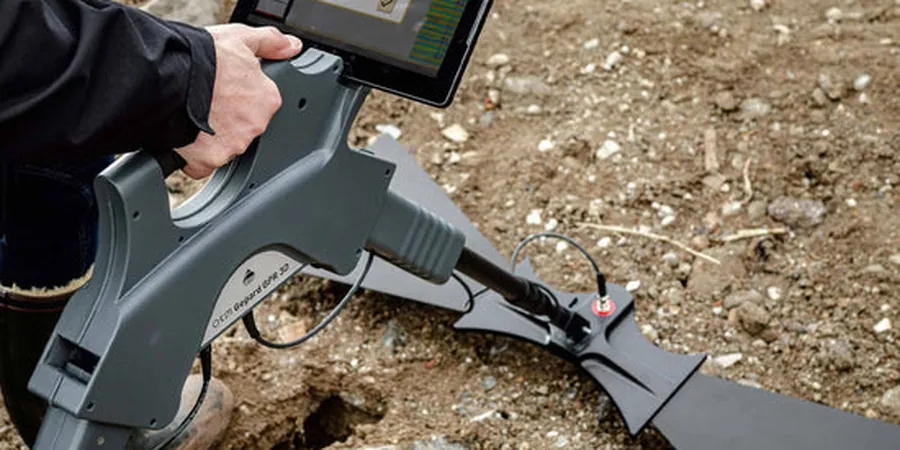

Technical reference image — Auckland
Local considerations
In Auckland, many times we see contractors start digging without knowing what lies beneath. A forgotten utility line or an old foundation slab can halt work for days. The real risk is hitting a high-voltage cable or a gas main hidden under reclaimed land near the waterfront. GPR survey in Auckland eliminates that guesswork. It identifies metallic and non-metallic objects, so you avoid costly strikes. Even on developed sites, radar penetrates asphalt and concrete to reveal buried structures.
Map buried pipes, cables, and conduits before any excavation. Ideal for brownfield sites and road works. Accuracy within 0.1 m in favourable soils.
02
Concrete Scanning
Locate rebar, post-tension cables, and voids inside slabs and walls. Essential for core drilling and structural modifications on Auckland commercial buildings.
03
Void Detection
Identify underground cavities from old basements, collapsed drains, or solution features in limestone. Prevents sinkholes during construction.
04
Archaeological & Geotechnical
Map buried foundations, graves, or natural soil layering without excavation. Used for heritage assessments and pre-tender ground models.
Applicable standards
NZS 4402 (Standard Guide for Using the Ground Penetrating Radar Method), NZS 3404 (Steel Structures Standard, guidance on utility clearance), AS/NZS 3000 (Electrical Installations, safety around buried cables)
Frequently asked questions
How deep can GPR penetrate in typical Auckland soils?
In dry sands and gravels common on the North Shore, we reach 4 to 5 metres. In the clay-rich soils of the central volcanic field, depth drops to 2 to 3 metres. Wet ground reduces range further. The 200 MHz antenna gives best depth, while 900 MHz gives finer detail at shallower depths.
Does the GPR survey require any site preparation?
No special preparation is needed. The surface must be accessible for the antenna. Grass, asphalt, concrete, and gravel are all fine. We avoid thick steel mesh or large metal debris directly above the survey line, as they cause strong reflections that mask deeper targets.
How much does a GPR survey in Auckland cost?
A typical utility survey for a 500 m² site costs between NZ$2,010 and NZ$12,090, depending on depth required and number of utility types. Concrete scanning per slab starts around NZ$1,500. We provide firm quotes after a brief site review.
How do I interpret the radar data?
We deliver a full interpreted plan showing locations and depths of all detected objects. Our engineers label utilities by type (water, power, gas) and mark anomalies like voids or rebar. Raw radargrams are also included for your geotechnical consultant if needed.
