Auckland sits on a mix of Waitemata sandstone, East Coast alluvium, and volcanic basalt. The annual rainfall exceeds 1,200 mm, and the water table can sit just two meters below the surface in coastal suburbs like Ponsonby and St Heliers. We see drainage failures most often where designers assume uniform soil and ignore perched water. Our geotechnical drainage design starts with a field investigation of the actual soil profile and water conditions. Before we model any system, we run a ensayo de permeabilidad en campo to measure the undisturbed hydraulic conductivity of each layer. That data drives the pipe spacing, filter design, and outlet capacity. We do not guess the coefficient of permeability.
Drainage design without measured permeability is guesswork. We measure K in the field, on the actual soil at the actual depth.
Methodology and scope
We use a 150-mm diameter test pit with a constant head permeameter for the field test. The equipment is straightforward but the interpretation is not — especially in layered soils like the East Coast Bays formation. We measure K values between 10⁻⁵ and 10⁻⁸ m/s depending on the clay fraction. The test takes about three hours per depth, and we repeat it at two or three levels when the profile changes. These results feed directly into the drainage design: drain spacing, geotextile wrap requirements, and the need for a filter layer. We also run a ensayo de infiltración when the design includes soakage pits or infiltration basins, which is common in new subdivisions on the North Shore. For projects on the volcanic cones, we recommend a ensayo de placa de carga to verify the subgrade reaction before placing the drainage blanket. The combination of field permeability and plate load tests gives us a complete picture of the ground response.

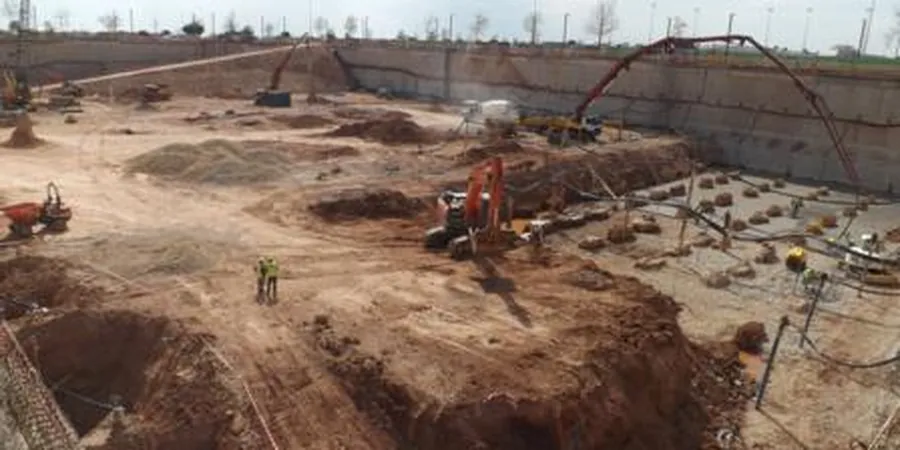

Technical reference image — Auckland
Local considerations
The most common mistake we see in Auckland is designing drainage for the dry summer condition and ignoring the saturated winter condition. When the water table rises, the drainage capacity drops and the soil loses strength. That leads to slope failures, flooded basements, and cracked retaining walls. We have seen a brand-new subdivision in Flat Bush suffer a major slope failure because the drainage system was undersized for the actual permeability of the underlying siltstone. Our geotechnical drainage design includes a seasonal water table analysis and a factor of safety check for the worst-case scenario. We also verify the outlet capacity — a drain is useless if the outfall is blocked or undersized.
Constant head and falling head tests in test pits at the exact depth of the proposed drain. We provide a K value for each soil layer plus a design recommendation for drain spacing, pipe diameter, and filter material. The report includes a seasonal adjustment factor based on Auckland's rainfall data.
02
Drainage system design and verification
Complete design of subsurface drainage systems including pipe networks, soakage pits, and infiltration basins. We size the system using the measured K value and the 1-in-10-year storm event. The deliverable includes a drainage plan, pipe schedule, geotextile specification, and outlet capacity check.
Applicable standards
NZS 4404:2010 (Land development and subdivision infrastructure), Auckland Council Stormwater Code of Practice (2015, updated 2020), AS/NZS 1547:2012 (On-site domestic wastewater management — drainage principles)
Frequently asked questions
Why is field permeability testing necessary for drainage design in Auckland?
Because Auckland's soils range from high-permeability volcanic ash to low-permeability clayey siltstone. A lab test on a disturbed sample does not represent the in-situ condition. The field test gives you the real K value at the actual depth of the drain.
What is the difference between a constant head and a falling head permeability test?
The constant head test is used for soils with higher permeability (sand, gravel) where water flows fast enough to maintain a steady head. The falling head test is for fine-grained soils (silt, clay) where the flow is slower. We choose the method based on the soil type observed in the test pit.
How much does geotechnical drainage design cost in Auckland?
The cost ranges between NZ$1,280 and NZ$4,460 depending on the number of test pits, the depth of testing, and the complexity of the drainage system. A typical residential lot with two test pits and a simple pipe layout falls at the lower end. A commercial site with multiple test pits and a basin design is at the higher end.
What standards does Auckland Council require for drainage design?
The primary standard is NZS 4404:2010 for land development infrastructure. The Auckland Council Stormwater Code of Practice (2015) adds specific requirements for soakage pits, infiltration, and water quality. For site-specific drainage on slopes, we also follow the NZGS guidelines for groundwater control.
Can drainage design prevent slope instability in Auckland's volcanic soils?
Yes, if the system is designed for the saturated condition. The volcanic soils on the isthmus (basalt-derived clays) can lose up to 50% of their shear strength when the water table rises. A proper drainage system that keeps the groundwater at least 1 m below the slip surface can increase the factor of safety from 1.0 to 1.5 or higher.
